    Martensitic Stainless Steel SA240 410 / 516 Gr.60 Square Clad Plate for Seperator

    Ask Lasest Price
    Brand Name : Suntech or OEM
    Model Number : E0026
    Certification : EN10204 3.1, EN10204 3.2, DNV, TUV, SGS, etc
    Price : negotiation
    Payment Terms : L/C, D/A, T/T, D/P
    Supply Ability : 35000tons/Year
    Delivery Time : 60 working days after received your payment
    • Product Details
    • Company Profile

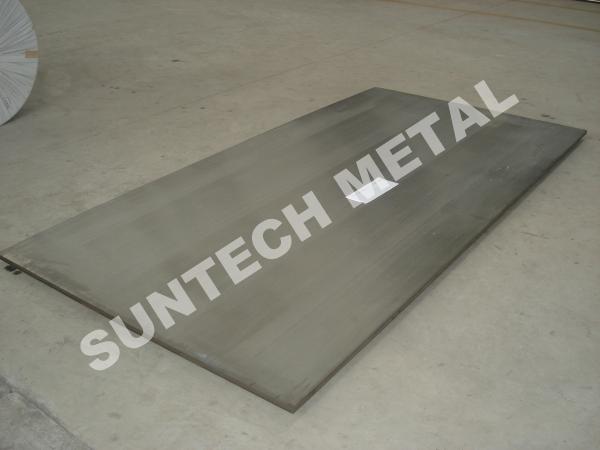

    Martensitic Stainless Steel SA240 410 / 516 Gr.60 Square Clad Plate for Seperator

    Martensitic Stainless Steel SA240 410/516 Gr.60 Square Clad Plate for Seperator


    Explosion Bonded / Bimetallic / Cladded Plate / mature welding technology


    Flying Layer: SA240 410

    Base Layer: A516 Gr.60

    Size: (3+22)*1500*3000mm

    Production code: ASTM B264, ASME SB264

    Packing: plywood case packing

    Application: Petro-chemical, Vacuum Salt Industry, Chlor-alkali, Metallurgical, Food, Light Industry, Medicine, Auto Industry, Electrolytic Aluminum, Fertilizer, Power Industry, Building Materials, Electrolysis Industry, Hydrometallurgy etc.


    Table for available type of Stainless steel clad plates:


    Product Names:

    Stainless steel (Duplex) Clad Plate/Sheet, Stainless steel Clad Tube Sheet/ Tube Plate

    Production Codes:

    ASTM B263, ASME SB263, ASTM B264, ASME SB264, DIN , BS, JIS, GB/T, ISO, etc.

    Stainless Steel Grades:

    Ferritic Stainless Steel:310, 310S, 410, 410S

    Austenitic Stainless Steel:304, 304L, 316, 316L, 321, 316Ti, 317L

    Duplex & other high grade stainless steel: 904L,1825, 2205 (S31803), 2507(S32750), N08367 (AL6XN), 254SMo, 926, etc.

    Form

    Description

    Base Layer

    Base Layer Grade

    Maximum Size

    Clad Plate

    Stainless (Duplex) / Carbon Steel Clad

    Carbon steel plate and forging

    SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc.

    (1.5~14)/(6~200) x W(max W 4110) x L(max L 7000)

    Titanium / Stainless Steel (Duplex) Clad

    Titanium

    ASTM/ASME B265 Gr1, Gr2, Gr.3, Gr.5, Gr7, Gr.9, Gr12

    (1.5~14)/(6~200) x W(max W 4110) x L(max L 7000)

    Aluminum / Stainless Steel / Aluminum Clad

    Aluminum

    A1050, A1060, A1070, A1100, A5052, etc.

    (1.5~40)/(1-5)/(6~200) x W(max W 1000) x L(max L 1000)

    Copper/Aluminum /Stainless Steel/ Aluminum/Copper Clad

    Aluminum

    A1050, A1060, A1070, A1100, A5052, etc.

    (1.5~40)/(1-5)/(6~100) x W(max W 1000) x L(max L 1000)

    Copper, Naval Brass

    C10100, C10200, C11000, C26200, C28000, C46400, C70600, C71500, etc.


    Competitive Advantage:

    1. Abundant experience: more than one decade of abundant experience in non-ferrous metal cladding and production;

    2. Technical consulting service: technical consulting on material, welding, NDE, etc;

    3. Independent inspection service: in-process inspection, final inspection;

    4. Transportation advantage: 296kms away from Shanghai seaport.
