Shell Tube Heat Exchanger Chemical Process Equipment 1.6MPa - 10Mpa
1. Product Description
| Application | Paper and Pulping |
| Tube Material | Titanium Gr.2 |
| Tubesheet Material | Titanium Gr.2/SA266 |
| Volume | 3500L |
| Dimension | Dia. 800* Length 7000mm*Surface 120 sqm |
| Weight | 8tons |
| Other Available Materials | Stainless Steel, Zirconium, Tantalum |
This heat exchanger is a device used to transfer heat between one
or more fluids. The fluids may be separated by a solid wall to
prevent mixing or they may be in direct contact.
They are widely used in space heating, refrigeration, air
conditioning, power stations, chemical plants, petrochemical
plants, petroleum refineries, natural-gas processing, and sewage
treatment. The classic example of a heat exchanger is found in an
internal combustion engine in which a circulating fluid known as
engine coolant flows through radiator coils and air flows past the
coils, which cools the coolant and heats the incoming air
Product advantage: (Ti Vessel)
- Corrosion resistance.
- Highly resistant to corrosion in sea water, aqua regia and
chlorine.
- Slow to react with water and air, as it forms a passive and oxide
coating that protects the bulk metal from further oxidation.

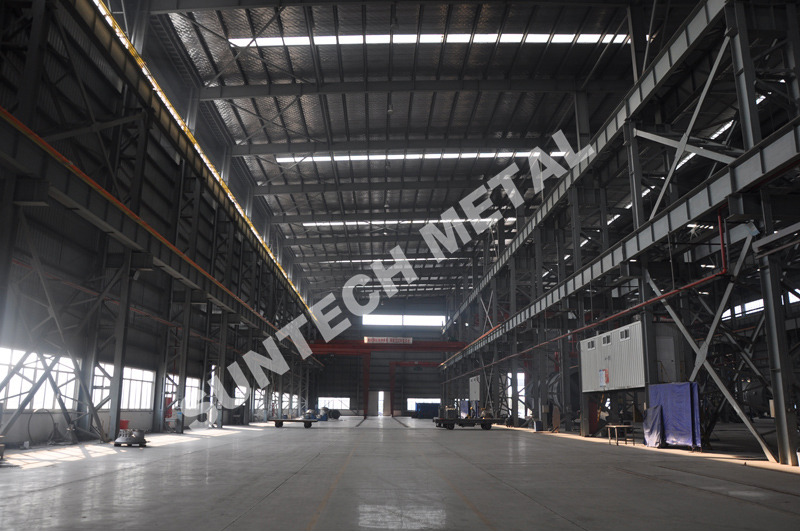

2. Workshop Corner
3. Option test&Inspection items
1). PMI Positive Material Identification
2). UT Ultrasonic testing
3). PT Penetrate testing
4). RT Radiographic testing
5). Interlayer temp measurement
6). Helium leakage test
7). MT Magnetic particle testing
8). Heat cycle testing
9). Hydraulic testing
10). Coating thickness testing
4. Certificate(Partial)
Suntech has been certificated by ASME U,PED andNB which are
accepted by many famous domestic and oversea companies. and also
established the quality control systerm based on ISO-9001 which
have been implemented to the process of R&D, fabrication,
logistic , Markting and services.
