Heat Exchanger Equipment Bimetal Titanium Carbon Steel Clad Tube Sheet

Detailed Product Description:

SB265 Gr.1 Titanium/Carbon Steel Clad Tubesheet

Cladding Layer:SB265 Gr.1

Base Layer:SA516 Gr.70N

Size:(6.35+31.75)mm*OD390mm

Edge Treatment: Machine

Surface status: Clad layer surface will be polished after bonding.

Bonding rate: 100% sound bonding

Packing: Plywood case

Characteristics and applications :

Titanium metals with excellent corrosion resistance, is widely used for kinds of chemical reactors, heat exchanger parts; however, it costs too much. A good way to solve this problem is using titanium-carbon steel clad plates (titanium-steel explosive clad metals) substituting for titanium plates.

This kind of clad metals combining all the characteristics of good corrosion resistance of titanium plate, with good strength of steel, can meet the requirements of structure as well as reducing the cost.

For example, if we make urea synthesis tower, vacuum salt evaporator, polyester reaction kettle, by titanium clad metals, the cost will reduce around 30-40%.

Titanium-steel clad plates are widely used in soda manufacturing.

In recent years, there's a new application for titanium-steel clad plates, which is, used for corrosion resistance materials of steel structures in marine civil projects. Not only because of its low cost, but also the requirements of installation, and welding, titanium-steel clad plates are necessary to meet properties.

Titanium-steel clad plates are widely used for tanks, towers, heat exchangers, pipes, etc. in the field of petrochemical industry, that because of its good corrosion resistance, high temperature resistance, and improving their lifetime of equipments.
In order to resist corrosion and reduce cost, people will prefer to choose stainless steel clad plates, nickel alloy clad plates, and titanium-steel clad plates.

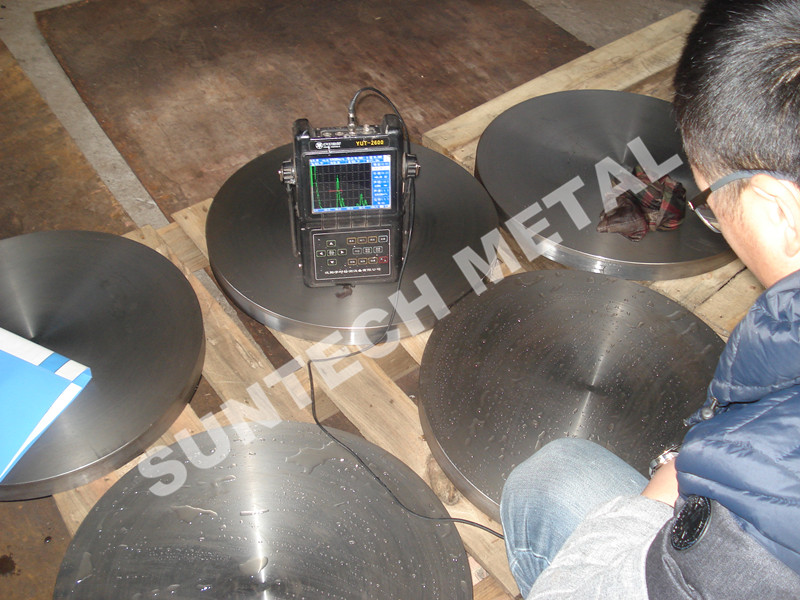

Ultrasonic testing

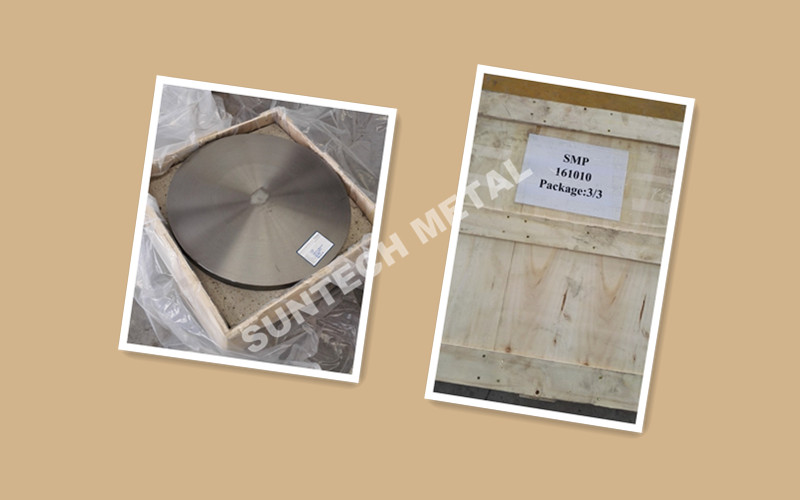

Packing

Nanjing Suntech Metal Equipment Co., Ltd, located in south-east China, is a professional supplier chemical process equipment as well as explosion bonded clad materials made of non-ferrous metals and stainless steel.

We supply high-quality products manufactured according to ASTM, ASME, JIS and some other world-wide recognized codes. The products have been widely used in such fields as petrochemical, chemical, pharmaceuticals, metallurgy, power, electronics, sea engineering, environment protection, and etc. Our products have been exported to South East Asia, Europe, South America and well praised by customers.

We are committed to serve your organization's sourcing needs with our quality products as well as our service, which is further strengthened by our well established in-house quality assurance capabilities plus quick supply of raw material and finished products. More than a buzzword at Suntech Metal, quality assurance is a way of life. Each prospect undergoes a stringent approval process including implementation of QA program with periodic reviews conducted to ensure that our organization maintains the highest standards for quality production.

Adhering to the business objectives of integrity based, service - oriented, forge ahead, and innovation efforts, we are unremittingly perfecting ourselves to serve customers worldwide and is expecting to cooperate with you!
